Magna'Tron Neck - Universal Mount

Options

$159.00 - $169.00

Info

Info

Specifications

Position, Resistance, Inductance, Pole Spacing E to E, Pole to Pole Spacing, Recommended Pot Value,

Specifications

Position:
Neck
Resistance:
4.8k
Inductance:
1.24H
Pole Spacing E to E:
1.90"
Pole to Pole Spacing:
.380"
Recommended Pot Value:
500k

Description

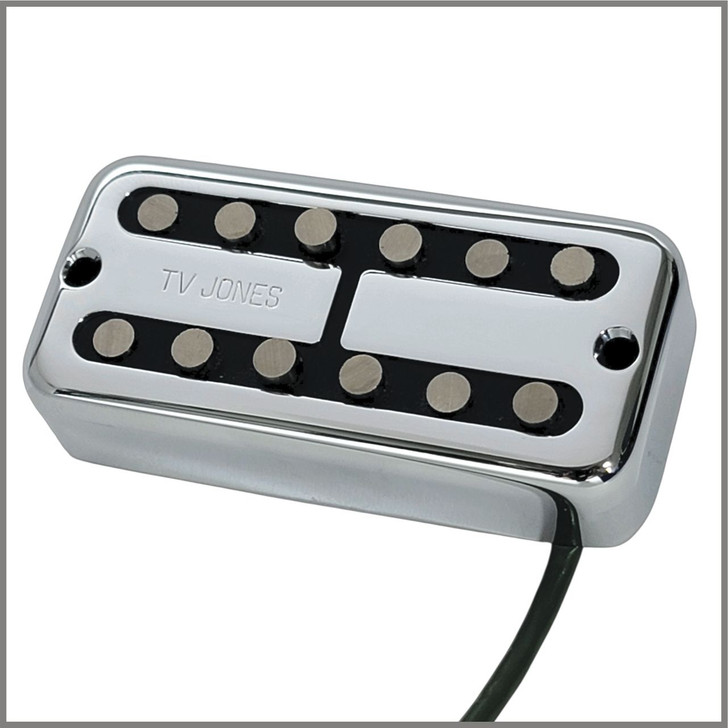

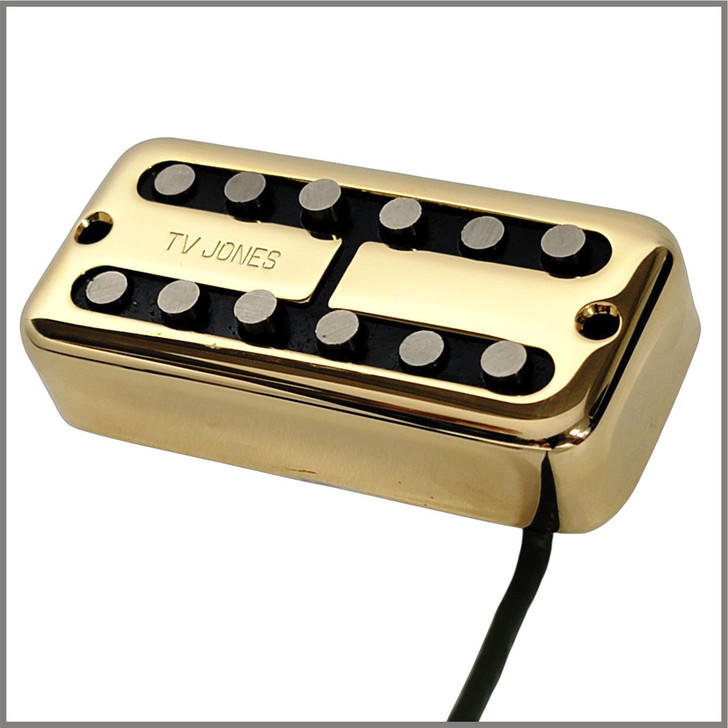

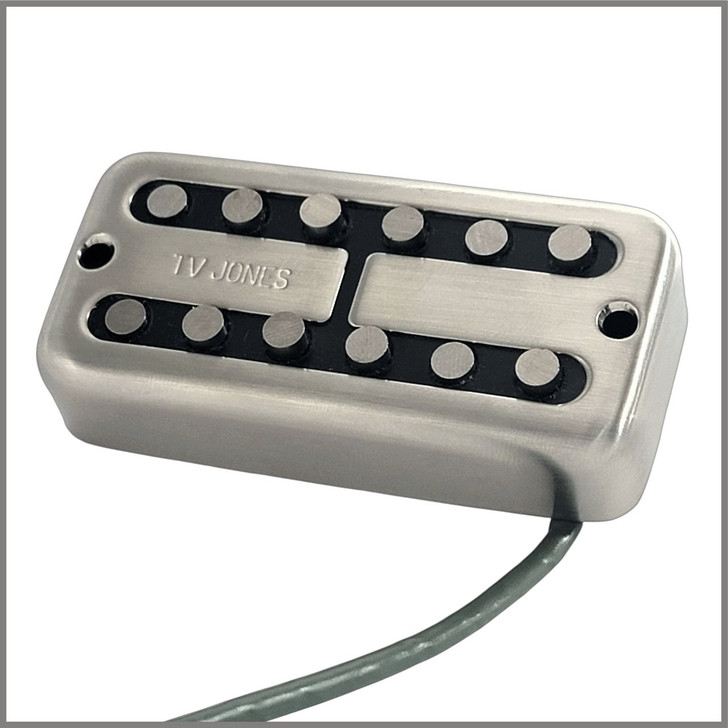

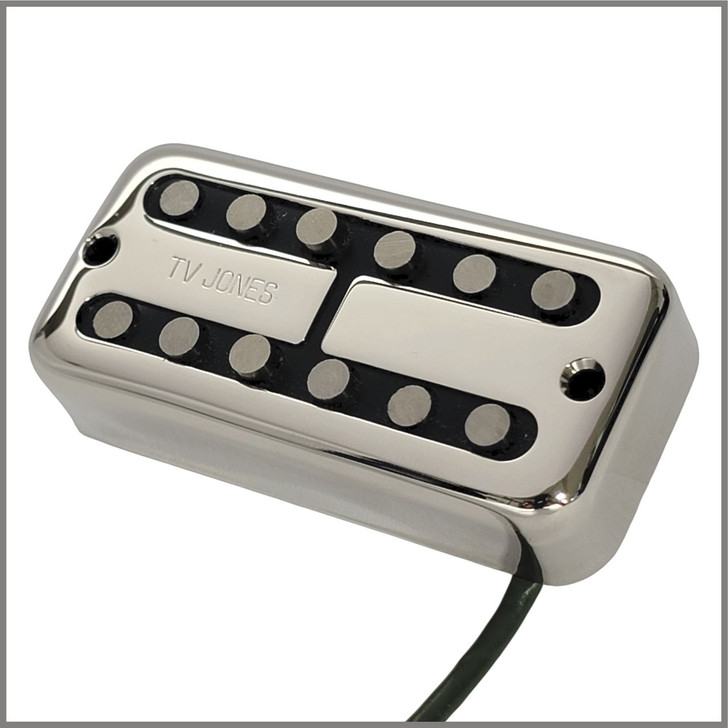

Magna'Tron™ Neck Pickup - Universal Mount™

The Magna'Tron blends single-coil twang with unique Filter'Tron & DeArmond influence. Although it can sound just like a single-coil, it is built with two coils and qualifies as a humbucker. The dual-coils provide a hint of compression on the high-end and no 60-cycle hum. One part of the recipe that makes the Magna'Tron so special is it's staggered cylinder "Fender-style" magnets.

Tone/Characteristics

Bright and chirpy with quick attack and exceptional pop and clarity. The Magna'Tron delivers a unique mix of single-coil spank meets Filter'Tron style twang with no hum! Slightly brighter and tighter on the bass than the TV Classic.



Output/Power

DC Resistance is not entirely an indicator of true pickup output, although it can be helpful.

Bridge: DCR - 8.0k / Inductance - 2.92H

Neck: DCR - 4.8k / Inductance - 1.24H

Installation

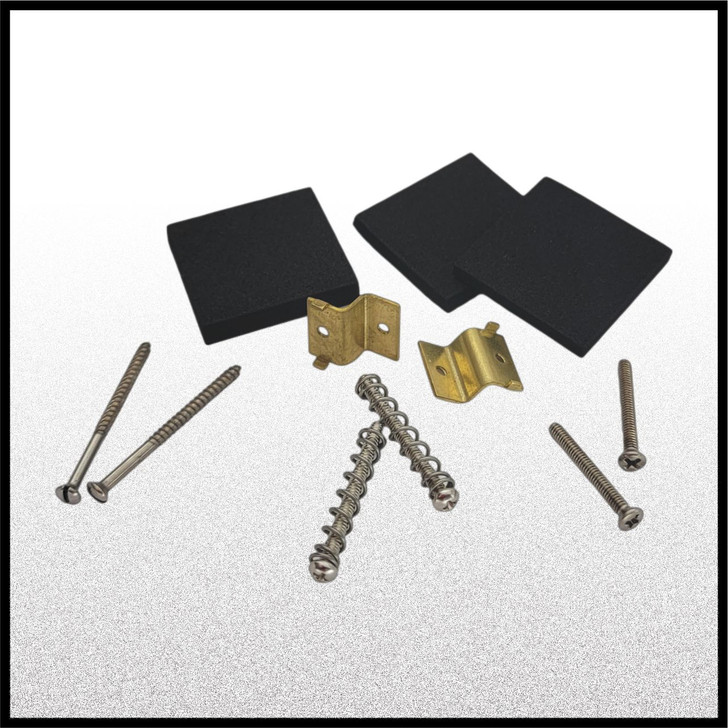

The Universal Mount is a direct drop-in replacement for guitars with standard sized Filter'Trons - with and without "ears" or "clips". This pickup comes standard with two pieces of compression rubber, 2 mounting (wood) screws, and 1 Universal Mount Clip Pack - which includes everything you will need to mount the pickups to a TV Jones ring or pickguard.

The Universal Mount can be installed two different ways:

  • As a direct drop-in replacement for guitars with standard sized Filter'Trons – use wood screws and compression rubber
  • As a replacement for a humbucker mount pickup – attach clips before installing pickup to ring or pickguard

NOTE: The Universal Mount requires one of the following TV Jones rings (unless suspending from a pickguard)

Ring Options - Click on photo for more information

 EM1 Ring

 Gibson-style

 Best for guitars with traditional humbuckers EM5 Ring for English and Universal Mount

Comes in

Tall and Short

Black and Cream

 EM2 Ring

 Gretsch-style

 Best for Gretsch Electromatic guitars EM5 Ring for English and Universal Mount

Comes in

Silver - Gold - Clear

 EM3 Ring

 Dogear

 Best for guitars with dogear pickups EM5 Ring for English and Universal Mount

Comes in

Black and Silver

 EM4 Ring

 Fender-style

 Best for Fender guitars with humbuckers.

 Flat top guitars

EM5 Ring for English and Universal Mount

Comes in

Black

 EM5 Ring

 Gretsch-style

 Best for Gretsch guitars with dual screw   adjustment EM5 Ring for English and Universal Mount

Comes in

Silver - Gold - Clear

Wiring Notes

This pickup is shipped with 4-conductor wire but is ready for standard 2-conductor connection. The extra red and green wires come soldered together and taped off - to split coils, send these to ground.

Splitting coils is generally not recommended with the Magna'Tron because of it's natural tight and bright sound however some may enjoy it. Additionally, the 4-Conductor wire is convenient for custom switching i.e. pickups combined in series or parallel.

Special Considerations

Filter'Tron Replacement: The Universal Mount is a direct drop-in replacement for guitars with Vintage Filter'trons, HS Filter'trons, Fideli'trons, Mega'trons, Full-trons and any other standard sized 'Trons.

Blacktop Filter'Tron Replacement: You will need the Universal Mount and one Dual Screw Mount Adapter per pickup to mount into the stock rings.

Broad'Tron Replacement: You will need the Universal Mount along with a new EM2 Ring or EM5 Ring.

Gretsch-Bucker Replacement: You will need the Universal Mount along with a new EM2 Ring or EM5 Ring.

Post-2012 Electromatic Guitars: You will need the Universal Mount with one Dual Screw Mount Adapter per pickup. This is necessary to mount the pickup into your stock ring.

Streamliner Guitars: These guitars are made with "Gibson-style" rings instead of standard Gretsch rings. You will want to choose the Universal Mount with either our EM1 Ring, EM2 Ring, or EM5 Ring to replace the stock ring when installing a Universal Mount Pickup (this depends on which style you prefer). If you choose either the EM2 or EM5 Gretsch-style Rings you will also want a pack of Ring Risers (due to the neck angle).

Gretsch 5120/5122 Guitars: You will need the Universal Mount along with an EM2 Ring or EM5 Ring and Ring Risers. Risers are recommended because the neck angle on these guitars tend to be high. You can find those in our Hardware section.

Gretsch 5420/5422 - early models: You will need the Universal Mount. If your guitar came stock with the large metal rings you will not be able to replace them with the smaller Gretsch rings because the footprint is too large. You will need one of our Dual Screw Mount Adapters for each pickup to attach the pickup to your stock ring.

Pre-2012 Pro Jet Guitars: These will require some specific modification in order to install No Ears Mount pickups. You can refer to our Pro Jet Resource Page which is in the Resources section.

Humbucker Replacement: To replace standard Humbuckers you will need the Universal Mount with one of our EM1 (Gibson-style), EM2 (Gretsch), EM5 (Gretsch), or EM4 (Fender-style) rings.



Check out our Guitar Modifications Section for more details on these unique guitars and more!

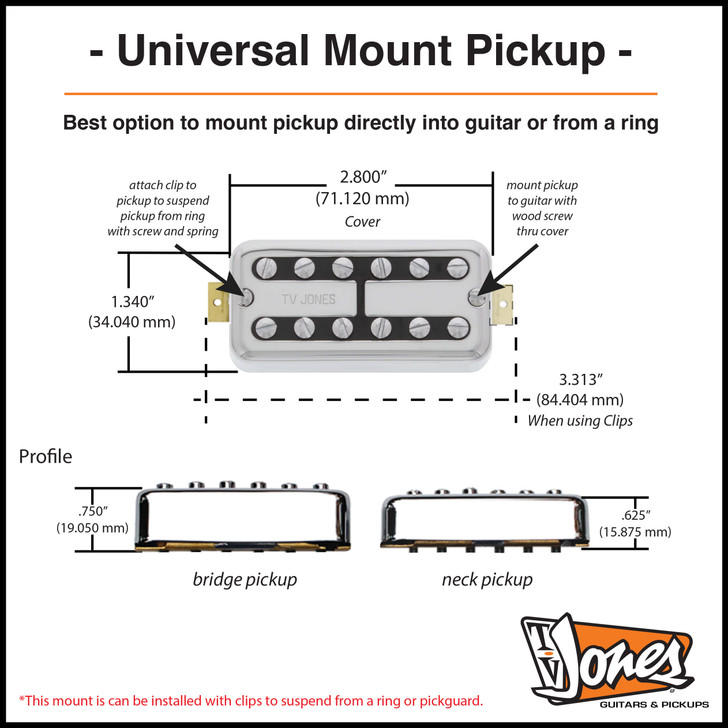

Universal Mount Dimensions TV Jones





- Magna’Tron Bridge and Neck Videos and Demos -




- Sound Clips -


TV Jones handcrafts your pickup and wiring harness at the time of order. Generally, orders ship within three to five business days.

If you require expedited service, please let us know in the notes when you order and we will do our best to accomodate your situation.
