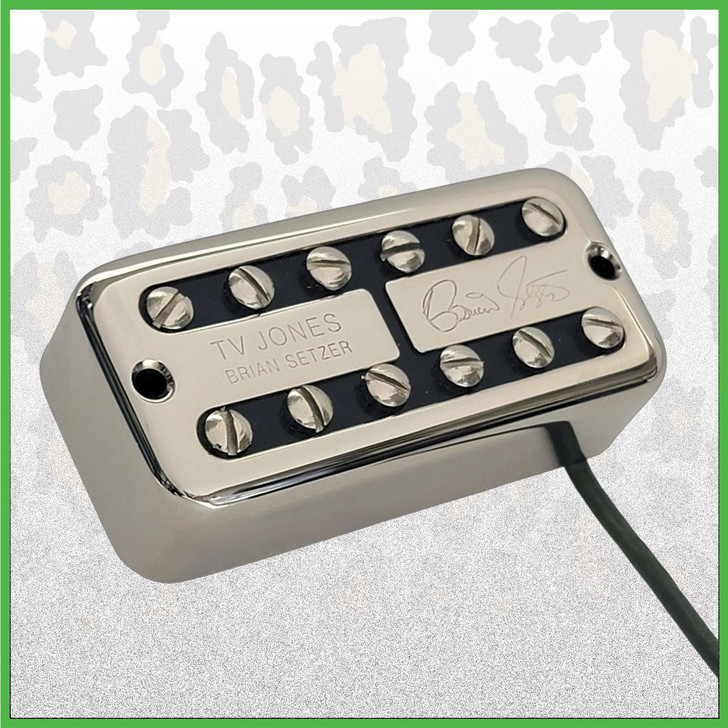

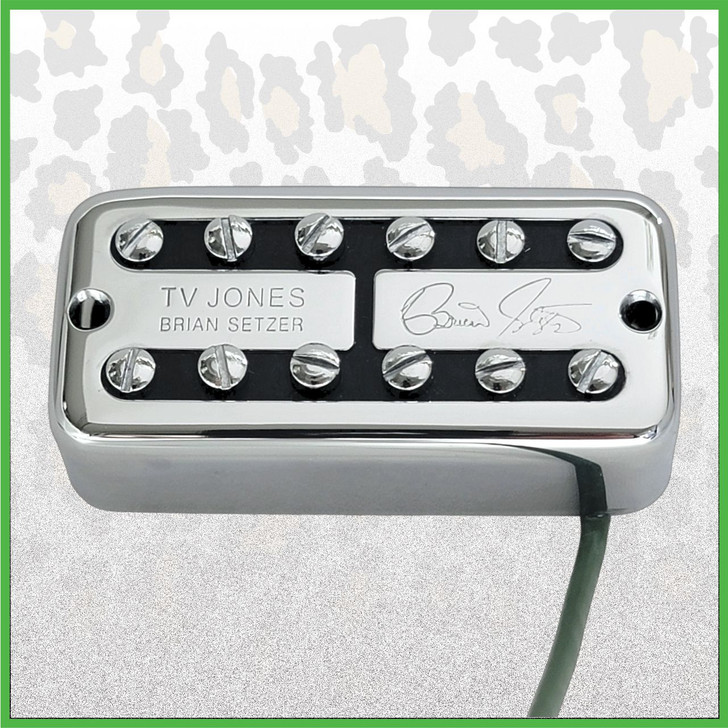

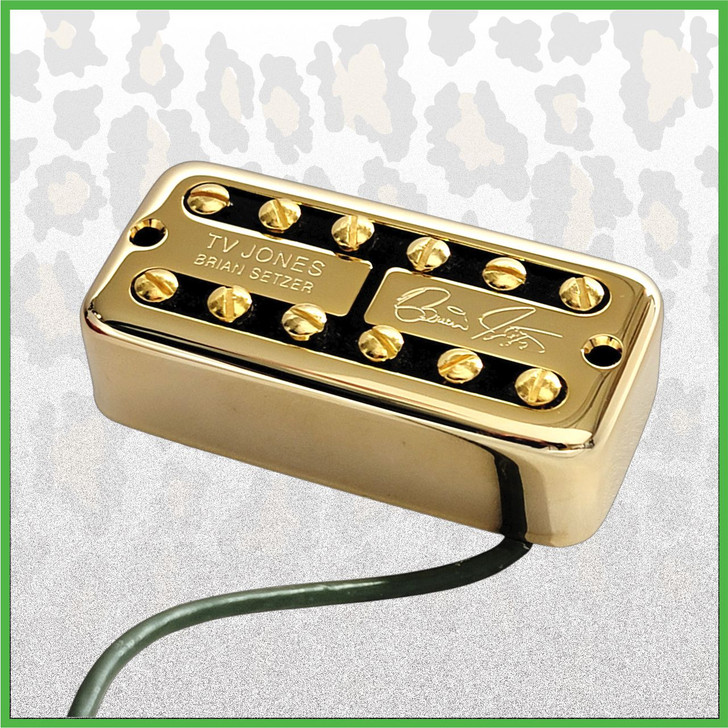

The Brian Setzer Signature pickup is derived from Brian's longtime preference for our TV Classic but is a bit more over-the-top than our other Filter'Tron creations. It features a proprietary design which employs special-alloy pole screws (with more steel) and mismatched coils which highlight the response of the magnet. This combination of small tweaks provides a perfect sonic match to the man's persona and musicianship.
Utilizing unique coils and pole pieces, this design provides more clarity while producing some of the punchiest low-mid response in our line. The classic Setzer sound is slightly overdriven yet clear, with a defined and tight/punchy low end. With slightly higher output than a TV Classic, the Setzer Signature punches through a mix with ease and dexterity.
DC Resistance is not entirely an indicator of true pickup output, although it can be helpful.
Bridge: DCR - 6.3k / Inductance - 2.35H
Neck: DCR - 4.5k / Inductance - 1.7H

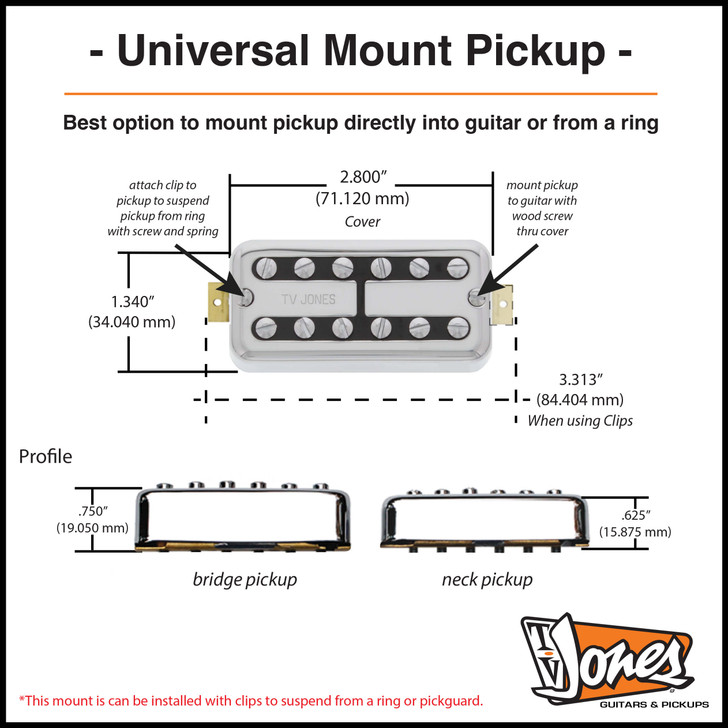

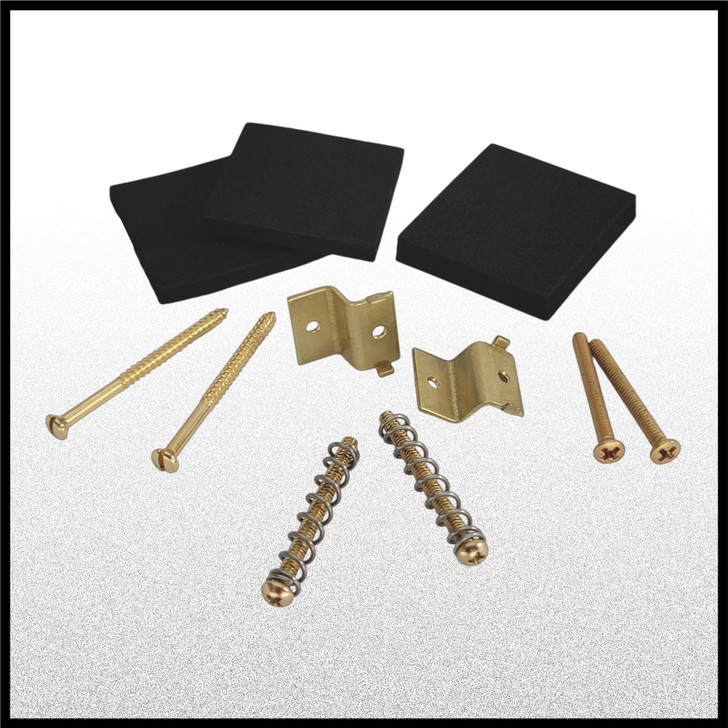

The Universal Mount is a direct drop-in replacement for guitars with standard sized Filter'trons - with and without "ears" or "clips". This pickup comes with two pieces of compression rubber, 2 mounting (wood) screws, and the Universal Mount Clip Pack which includes everything you will need to mount the pickups to your ring or pickguard.
This pickup is shipped with 4-conductor wire but is ready for standard 2-conductor connection. The extra red and green wires come soldered together and taped off - to split coils, send these to ground.
Splitting coils is generally not recommended for this pickup due to low coil output but some say it works well to their taste. 4-Conductor wire is also convenient for custom switching i.e. pickups combined in series or parallel.
Filter'Tron Replacement: The Universal Mount is a direct drop-in replacement for guitars with Vintage Filter'trons, HS Filter'trons, Fideli'trons, Mega'trons, Full-trons and any other standard sized 'Trons.
Blacktop Filter'Tron Replacement: You will need the Universal Mount and one Dual Screw Mount Adapter per pickup to mount into the stock rings.
Post-2012 Electromatic Guitars: You will need the Universal Mount with one Dual Screw Mount Adapter per pickup. This is necessary to mount the pickup into your stock ring.
Streamliner Guitars: These guitars are made with "Gibson-style" rings instead of standard Gretsch rings. You will want to choose the Universal Mount with either our EM1 Ring, EM2 Ring, or EM5 Ring to replace the stock ring when installing a Universal Mount Pickup (this depends on which style you prefer). If you choose either the EM2 or EM5 Gretsch-style Rings you will also want a pack of Ring Risers (due to the neck angle).
Gretsch 5120/5122 Guitars: You will need the Universal Mount along with an EM2 Ring or EM5 Ring and Ring Risers. Risers are recommended because the neck angle on these guitars tend to be high. You can find those in our Hardware section.
Gretsch 5420/5422 - early models: You will need the Universal Mount. If your guitar came stock with the large metal rings you will not be able to replace them with the smaller Gretsch rings because the footprint is too large. You will need one of our Dual Screw Mount Adapters for each pickup to attach the pickup to your stock ring.
Pre-2012 Pro Jet Guitars: These will require some specific modification in order to install No Ears Mount pickups. You can refer to our Pro Jet Resource Page which is in the Resources section.
TV Jones handcrafts your pickup at the time of order. Generally orders ship within seven to ten business days.
If you require expedited service, please let us know in the notes when you order and we will do our best to accomodate your situation.
