T-90 Neck - Soapbar Mount

Add to Cart

Options

$115.00 - $118.00

Info

,Width: ,Height: ,Depth:

Info

Specifications

Position, Resistance, Inductance, Recommended Pot Value,

Specifications

Position:
Neck
Resistance:
6.7k
Inductance:
5.14H
Recommended Pot Value:
500k

Description

T-90™ Neck Pickup - Soapbar Mount

The T-90 is our answer to the traditional P-90 pickup that combines a classic design with a touch of TV Jones sparkle and clarity. The result is a full & fat sound with clear, transparent overtones.

Tone/Characteristics

The bridge pickup has thicker highs and more defined lows than what is commonly heard from traditional P-90s. We use two Filter'Tron bar magnets, as well as Filter'Tron pole screws and wider pole-to-pole spacing on the bridge pickup. This provides more inductance for a thicker tone and plenty of dynamics. The neck pickup has two thinner bar magnets which contributes to it's clarity and warmth. It is considerably less boomy than traditional P-90s.



Output/Power

DC Resistance is not entirely an indicator of true pickup output, although it can be helpful.

Bridge: DCR - 8.1K / Inductance - 7.15H

Neck: DCR - 6.7k / Inductance - 5.14H

Installation

The Soapbar Mount is a direct drop-in replacement for any standard size Soapbar style pickups. This pickup ships with mounting screws and compression foam for adjustment.

Wiring Notes

This pickup is shipped with standard 2-conductor wire. We recommend 500k pots with our T90 pickups.

Helpful Notes

Soapbar Replacement: The Soapbar Mount is a direct drop in replacement for any standard size soapbar style pickups. The change in mount does not change the sound of the pickup.

Dog Ear Replacement: The Soapbar Mount is not a replacement for Dog Ear style pickups. To replace a Dog Ear pickup, pair any of our Universal Mount pickups (English Mount for T-Armond and T-90) paired with our EM3 (Dog Ear style) Ring.

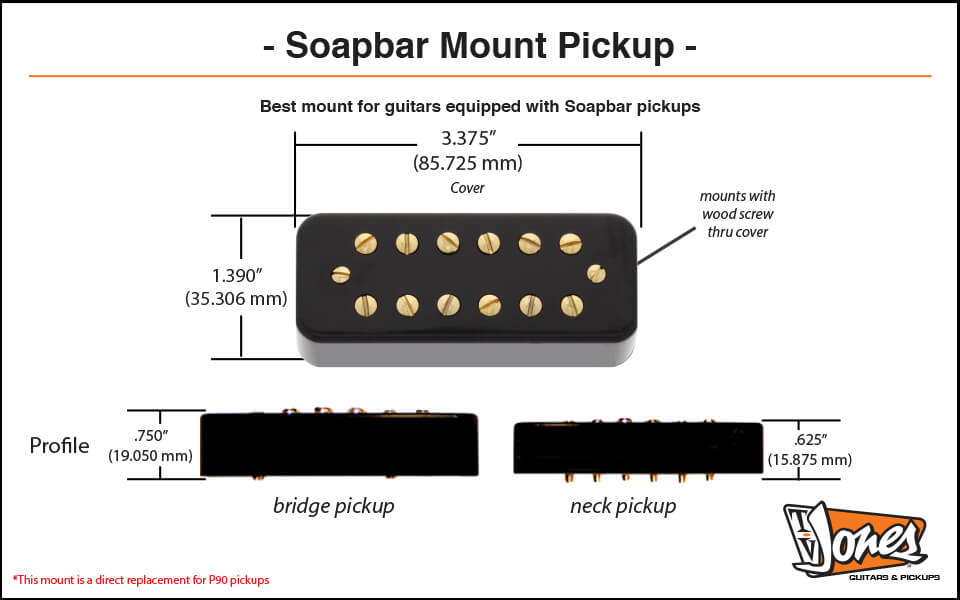

Soapbar Mount Dimensions
